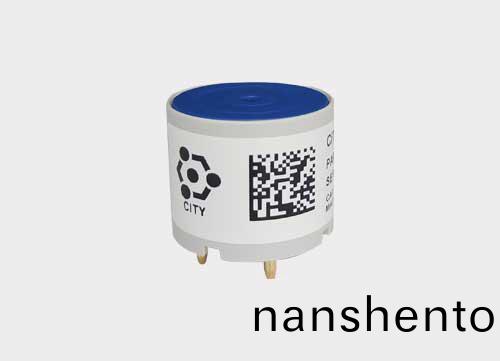

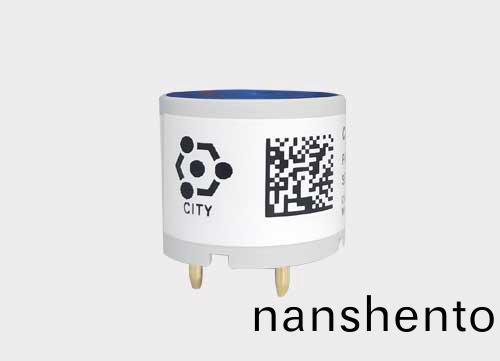

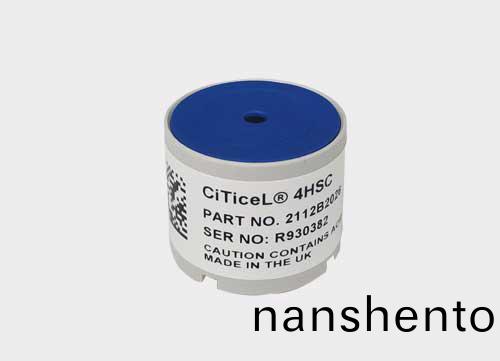

4HSC硫化氫氣體傳(chuan)感(gan)器(qi)

類　彆(bie)： 其牠(ta)傳(chuan)感(gan)器(qi)

描　述： Specifications are valid at 20°c, 50% RH and 1013 mBar, using City Technology recommendedcircuitry. Performance characteristics outline the performance of sensors supplied within thefirst 3 months. Qutput signal can drift below the lower limit over t

24小時服(fu)務熱(re)線
400-891-8898
産品(pin)詳(xiang)情(qing)

MEASUREMENT

Operating Principle

3-electrode electrochemical

Measurement Range

0-100 ppm H2S

Maximum Overload

500 ppm H2S

Filter

None

Sensitivity*

0.7 + 0.15 μA/ppm

Response Time (T90)*

20 Seconds at 20℃

Baseline Offset (clean air)*

<+0.5 ppm equivalent

Zero Shift (-40℃ to +50℃)*

< +0.4 ppm equivalent

Repeatability

<+5%

Linearity

Linear<±5%

ELECTRICAL

Recommended Load Resistor

5Ω

Bias Voltage

Not required

MECHANICAL

Housing Material

 Noryl 110

Weight

5 g(approx.)

Orientation

Any

ENVIRONMENTAL

Typical Applications

Portable life safety

Operating Temperature Range:


Continuous

-20'℃ to +40℃

Intermittent

-40℃to +55℃

Operating Pressure Range

1 atm+ 10%

Operating Humidity Range


Continuous

15% to 90% RH non-condensing


Specifications are valid at 20°c, 50% RH and 1013 mBar, using City Technology recommendedcircuitry. Performance characteristics outline the performance of sensors supplied within thefirst 3 months. Qutput signal can drift below the lower limit over time.
